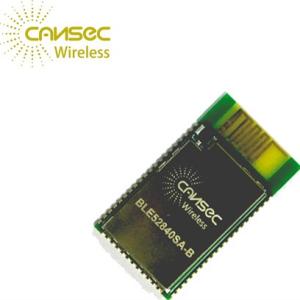

IoT BLE52840SA-B BLE 5.0 Nordic NRF52840 Ble Bluetooth Module

Name: IoT BLE52840SAB BLE 50 Nordic NRF52840 Ble Bluetooth Module
Brand: Cansec Wireless
Price: 5.14 USD

Brand Name : Cansec Wireless

Model Number : BLE52840SA-B

Place of Origin : Beijing

MOQ : 100

Price : USD 5.14$ per piece

Payment Terms : T/T

Supply Ability : 2000000 pieces per year

Delivery Time : 3~6 weeks

Packaging Details : Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg

size : 18.6*33.4*2.8mm

TX Power : 6dBm

RX sensitivity : -103dBm

TX current : 36mA

RX current : 4.6mA

Standby current : 1.5uA

Antenna type : Chip Antenna

Chipset : nrf52840

Contact Now

IoT BLE52840SA-B BLE 5.0 Nordic NRF52840 Ble Bluetooth Module

IoT Output Module Cansec BLE52840SA-B Nordic NRF52840 Blue Tooth Module 5.0 Ble For Smart Home Controller Industry

Parameter		Min	Typ	Max	Unit
Operating Voltage		1.7	3.3	5.5	V
Operating Temperature		-20	-	+70	℃
Current Consumption	Sleep Mode	-	1.5	-	uA
	Receive mode	-	4.6	-	mA
	Transmit Mode (@6dBm)	-	36	-	mA
TX Power (For Carrier)		-	-	6	dBm
RX Sensitivity (For Lora Modulation)		-	-	-103	dBm
Distance		180			m

IoT Output Module Cansec BLE52840SA-B Nordic NRF52840 Blue Tooth Module 5.0 Ble For Smart Home Controller Industry

The BLE52840 module is designed based on nRF528402. The nRF52840 is fully multi-protocol capable with full protocol concurrency. It has protocol support for Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary stacks.
The nRF52840 is built around the 32-bit ARM® Cortex™-M4 CPU with floating point unit running at 64 MHz.
It has NFC-A Tag for use in simplified pairing and payment solutions.
The ARM TrustZone® CryptoCell cryptographic unit is included on-chip and brings an extensive range of cryptographic options that execute highly efficiently independent of the CPU.
It has numerous digital peripherals and interfaces such as high speed SPI and QSPI for interfacing to external flash and displays, PDM and I2S for digital microphones and audio, and a full speed USB device for data transfer and power supply for battery recharging.
Exceptionally low energy consumption is achieved using a sophisticated on-chip adaptive power management system.

IoT BLE52840SA-B BLE 5.0 Nordic NRF52840 Ble Bluetooth Module

FAQQ1: Are you a factory or trade company?
 A1: We are a professional factory with 25 years experience.
 Q2: Can you accept OEM/ODM?
 A2: Sure, we have rich OEM&ODM experience.
 Q3: Do you have quality assurance?
 A3; Each of our products has undergone quality testing and has two years of free after-sales service.
