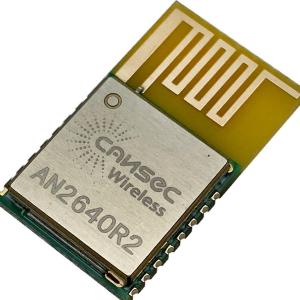

CC2640R2 BLE5.0 TI RF Module IoT Control Smart Home AN2640R2SA-K

Name: CC2640R2 BLE50 TI RF Module IoT Control Smart Home AN2640R2SAK
Brand: Cansec Wireless
Price: 2.78 USD

Brand Name : Cansec Wireless

Model Number : AN2640R2SA-K

Place of Origin : Beijing

MOQ : 100

Price : USD 2.78$ per piece

Payment Terms : T/T

Supply Ability : 2000000 pieces per year

Delivery Time : 3~6 weeks

Packaging Details : Box for 1000 pieces Package size: 40*34*20 cm Gross weight: 5.000 kg

size : 12×20×2.7mm

TX Power : 3.7dBm

RX sensitivity : -97dBm

TX current : 12mA

RX current : 9mA

Standby current : 1uA

Antenna type : PCB Antenna

Chipset : cc2640r2

Contact Now

CC2640R2 BLE5.0 TI RF Module IoT Control Smart Home AN2640R2SA-K

Cansec Pcb Antenna IoT Control Module An2640R2Sa-K CC2640R2 Ble5.0 Ble Module Smart Home

Parameter		Min	Typ	Max	Unit
Operating Voltage		1.8	-	3.8	V
Operating Temperature		-40	-	+85	°C
Current Consumption	Sleep Mode	-	0.1		uA
	Receive mode(@LDO mode)	-	9	-	mA
	Transmit Mode	-	12	-	mA
TX Power		-	3.7	5	dBm
RX Sensitivity		-	-90	-97	dBm
Distance		60			m

Cansec Pcb Antenna IoT Control Module An2640R2Sa-K CC2640R2 Ble5.0 Ble Module Smart Home

1. AN2640R2SA‐K Module is designed based on CC2640R2 Bluetooth Smart (Bluetooth® 4.2 and Bluetooth 5) System‐on‐Chip, fully supports the single-mode Bluetooth Low Energy operation.

2. The module provides the ability to either put your entire application into the integrated ARM Cortex M3 microcontroller or use the module in Network Processor mode in conjunction with the microcontroller of your choice.

There are also three levels of security available, and if operating in a secure mode, three different security protocols to choose from. However, criticisms have been leveled at these standards, claiming they are too weak for a truly secure network. Due to its limited operating range and purpose, security has not been the main issue in its design. As Class 3 standards, and perhaps future flavors come to light, security will almost certainly improve. Version numbers will also change as the technology improves. Versions 1.1, 1.2 and 2.0 are each slightly different, as will be future editions.

CC2640R2 BLE5.0 TI RF Module IoT Control Smart Home AN2640R2SA-K

FAQ

Q1: Are you a factory or trade company?
A1: We are a professional factory with 25 years experience.
Q2: Can you accept OEM/ODM?
A2: Sure, we have rich OEM&ODM experience.
Q3: Do you have quality assurance?
A3; Each of our products has undergone quality testing and has two years of free after-sales service.
